Description

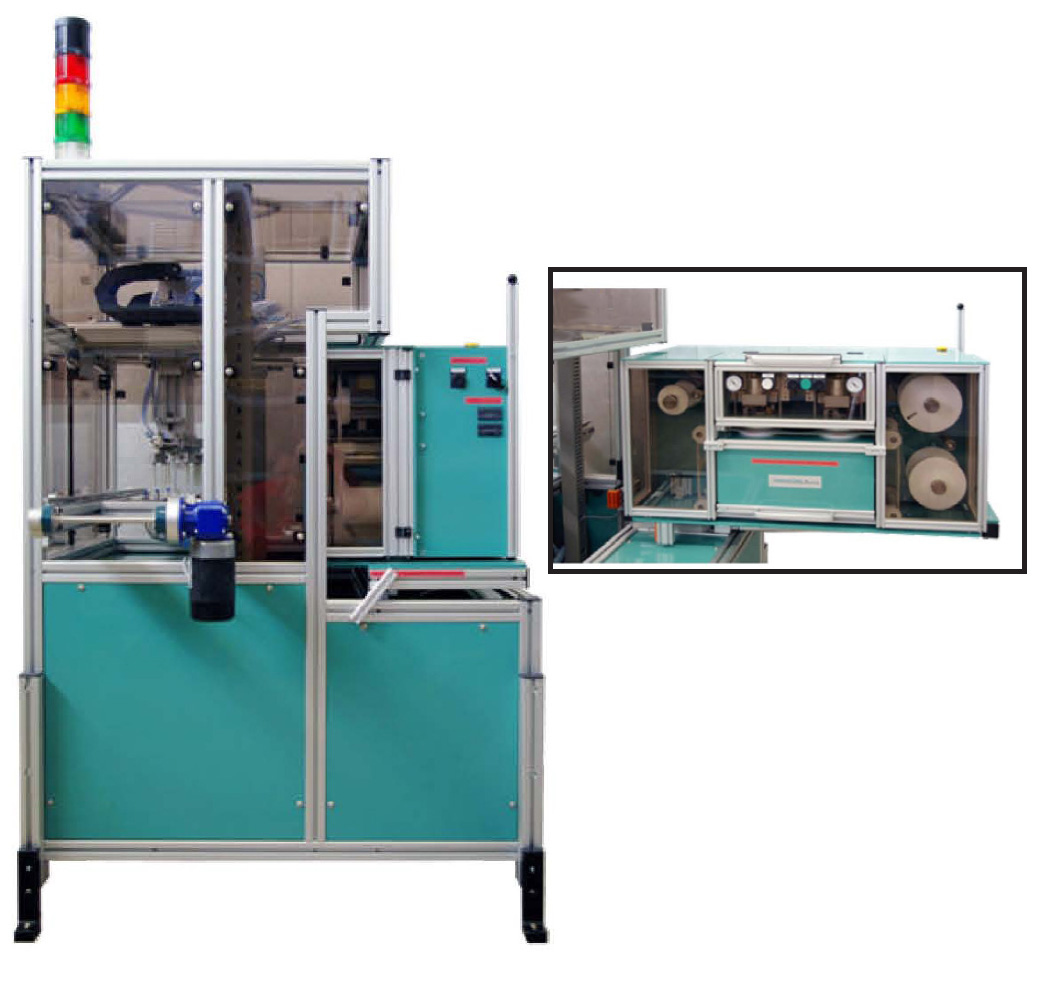

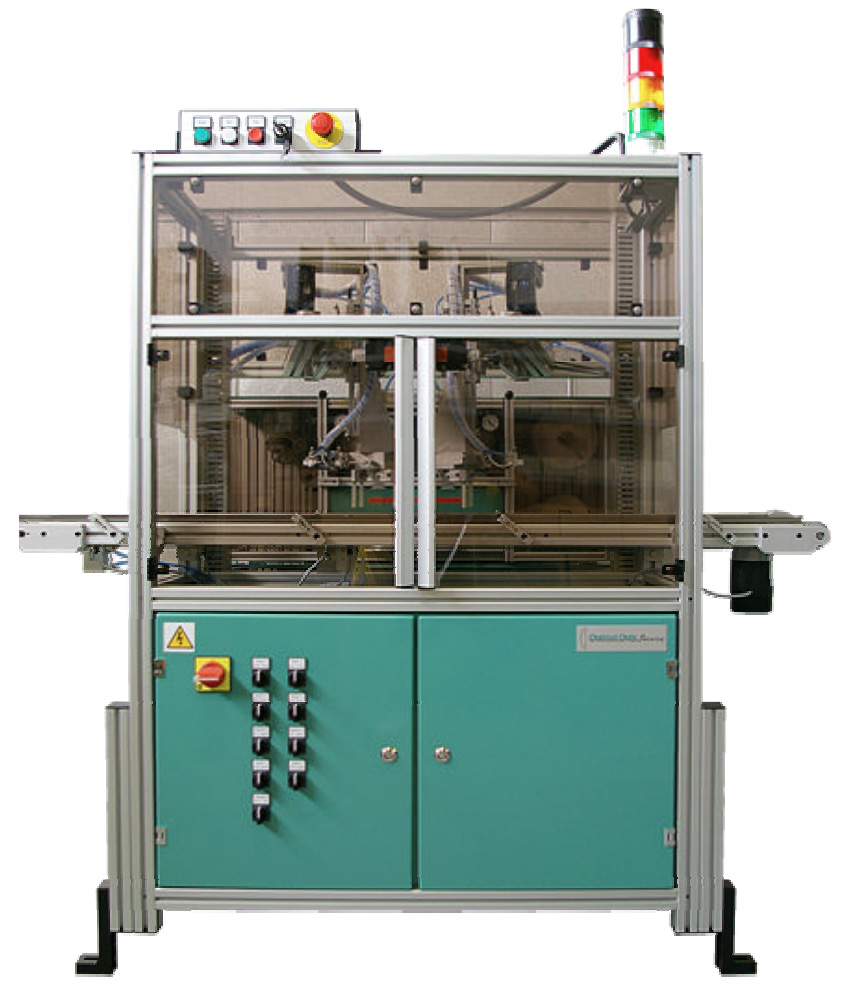

This is a fully automated system to apply protective tape to semi-finished
lenses. Job trays are transported automatically via a conveyor belt. Robotics
pick up the lenses and place them in the ASTA to be taped and put them back in
the tray when it is finished.
Features & Benefits
- Can tape two lenses at a time at up to 400 lenses per hour, making it
faster than other systems on the market. - Simple machine design makes it easy to set-up and maintain.
- Modular design keeps the taper and the automated system working
separately so the taper can be operated manually if necessary. - Works with all tapes, with or without liners.
- Available with standard cutting or hot-knife ASTA options (see back).
- Available with either finger grip or suction cup handling
- Units are manufactured to customer specifications based on
left or right loading, tray type and lens placement in the tray.
Specifications:
Dimensions: 51” W x 41”D x 66” H
Max. Lens Diameter: 83mm
Min. Lens Diameter: 55mm
Cycle Time: 15 seconds per pair of lenses
Electrical: AC 110V, 50-60 Hz
Compressed Air: 5-6 bar / 70-85 psi
Weight: 490 – 549 lbs.
Shipping Weight: 800 lbs.
